What is a Digital Earth Leakage Relay?
Digital earth leakage relay is a solid safety system that protects by detecting and isolating current leakage to the ground. It is a differential relay system that isolates the system, thus preventing hazards like fire or electrocution in case of hazardous leaks. This ensures that electric shocks, fires, and machine harm are less likely to happen. This device is necessary for maintaining electrical equipment safety in many industrial settings.
Working Principle
The digital earth Leakage Relay functions on the core balance principle model.
A core balance current transformer system constantly checks the flow of electricity through the active (phase) and neutral conductors. The sum of the currents in both phases is zero when it functions optimally. Such transformers can detect imbalances because current leaks to the ground. The relay sets off a trip mechanism if the leakage current exceeds a certain limit. This usually turns the power off or sounds a warning, ensuring quick protection of the power system.
Key Features/ Benefits
Digital Earth Leakage Relays offer a variety of useful features for electrical panel components. These are:
- Real-time detection of earth leakage currents.
- Customizable trip current and timer delay to reduce nuisance trips.
- Capable of detecting leakage currents as low as 30mA and insulation defects.
- LCD panels and LED indicators for set values, measured leakage, and fault conditions.
- Built-in test and reset options for easy maintenance.
- Open circuit detection for transformer reliability.
- Meets global safety standards like IEC 947-1.
- Simplifies control panel installation with DIN Rail Mounting.
- RS485 protocol for improved diagnostics and control.
These qualities make earth leakage relay circuit diagrams in various contemporary systems more secure and efficient.
Applications in Control Panels
An earth leakage relay with CBCT can be used in different kinds of control panels. These include :
- Generator Control Panels: These keep generator circuits safe from earth faults.
- Distribution Control Panels: Keep the wires further down the distribution board safe.
- Protection Control Panels: These are part of full security systems in business and industry settings.
- LT (Low Tension) Switchboards: To make the low-voltage distribution system safer.
- Motor and Control Circuits: These protect motors and sensitive electronics from insulation problems.
- Lighting Circuits, Variable-Speed Drives, and Cooling/AC Equipment: These make sure that different types of electricity loads can be safely handled.
- Mining, Data Centres, Renewable Energy Systems: These are used in specialised areas to discover ground problems early.
To better understand the role of CBCTs in these panels, refer to our guide on Current Transformers.

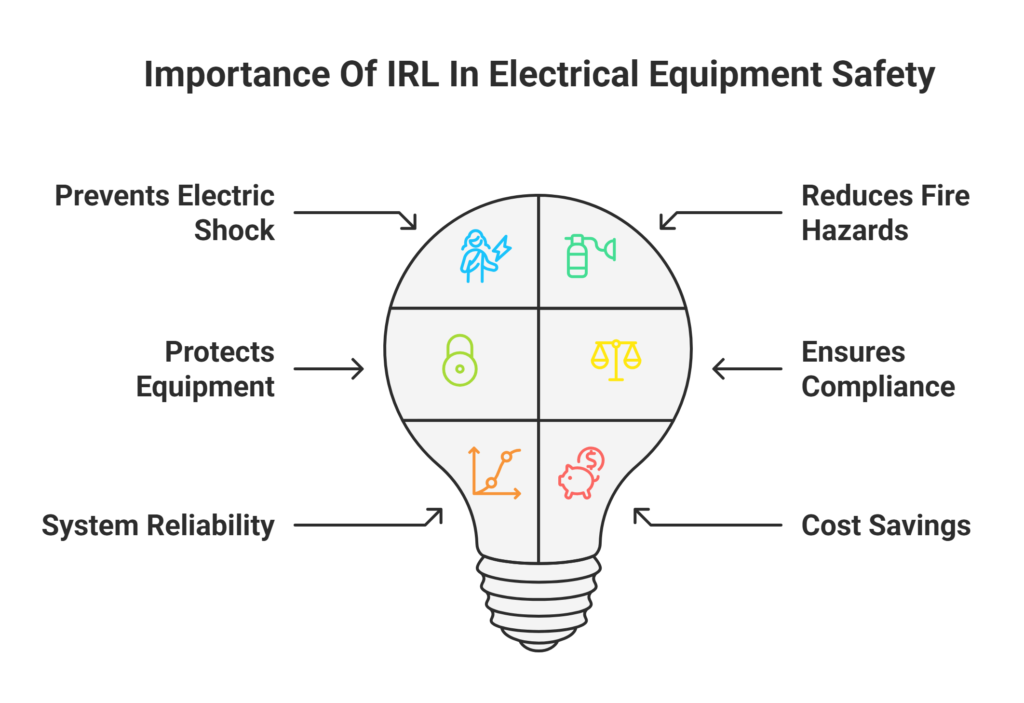

Importance Of IRL In Electrical Equipment Safety
When working with electricity, safety is very important, and these relays meet that need. The importance of ELR for electrical safety is as follows :
- Prevents Electric Shock: ELR with CBCT rapidly cuts off circuits when leakage crosses safe thresholds. This prevents electric shocks.
- Reduces Fire Hazards: Early detection and isolation of earth faults stop possible fires that can happen when insulation breaks down.
- Protects Equipment: It keeps small insulation problems from turning into major failures. This limits equipment damage and downtime.
- Ensures Compliance: Including ELR ensures that electrical systems meet all safety requirements and laws.
- System Reliability: ELRs reduce undetected defects, improving electrical system reliability and uptime.
- Cost Savings: It stops faults before they cause major damage. This further lowers fixed costs and lost productivity.
Conclusion
Digital Earth Leakage Relay is a vital component of modern electrical systems. They are an indispensable part of the electrical safety infrastructure. They aid by instantly detecting ground faults and keeping people, buildings, and tools safe. These relays can ensure that their electrical systems are safe and efficient. Beemet provides reliable, high-performance ELRs that experts trust.
Contact Beemet today to enhance your electrical safety systems.
Also, check out our multi function meters guide to understand how they work alongside Earth Leakage Relays.
FAQs
Q. For what reason do buildings and homes need Earth Leakage Relays?
A. Homes and businesses need Earth Leakage Relays for many reasons. This is because they keep people from getting shocked, keep fires from starting, and keep tools running. It quickly cuts power off when small electric leaks happen.
Q. Do Earth Leakage Relays reduce power?
A. No, Earth Leakage Relays do not save electricity. When there is a leak, they only keep people and tools safe by cutting off the power.
Q. What should I do if my ELR stops working?
A. If your ELR stops working, leaks might not be found. This might be bad. It needs a test button or a check to make sure it works.
